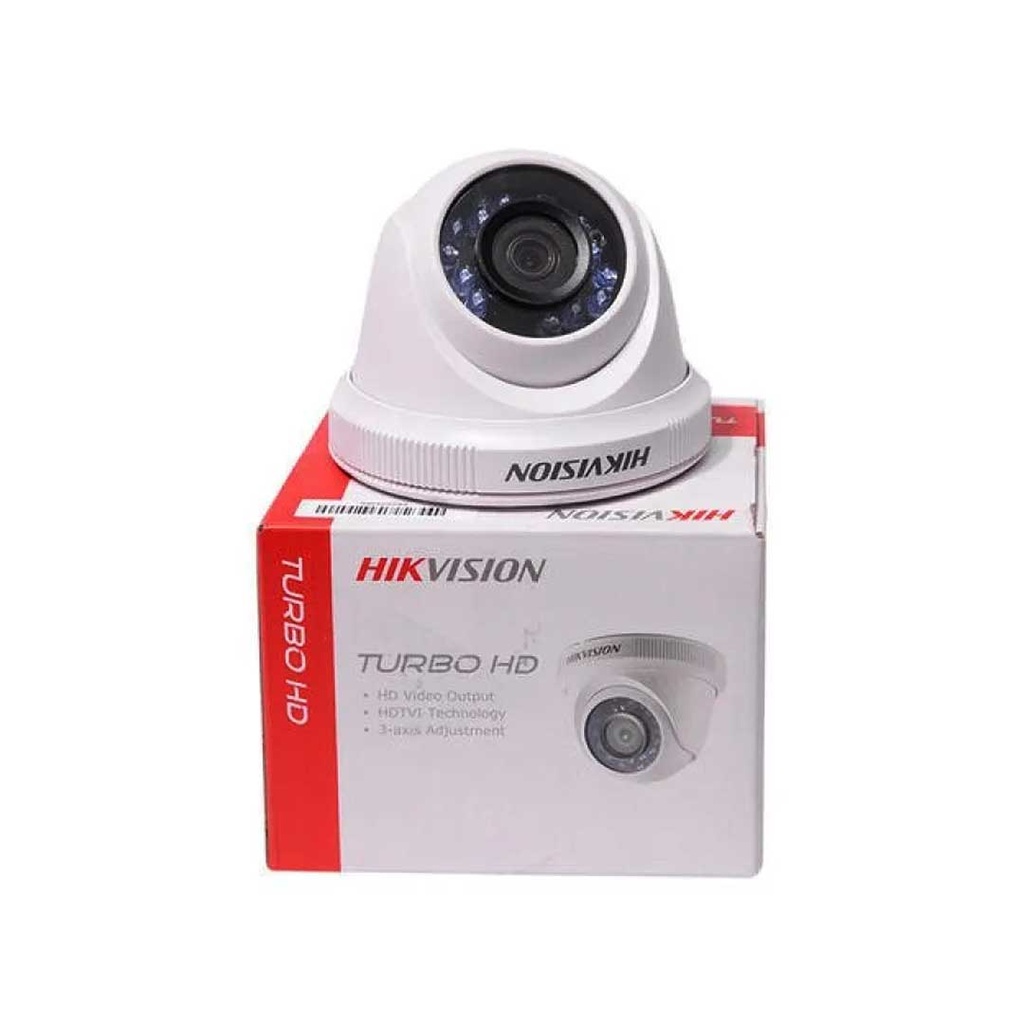

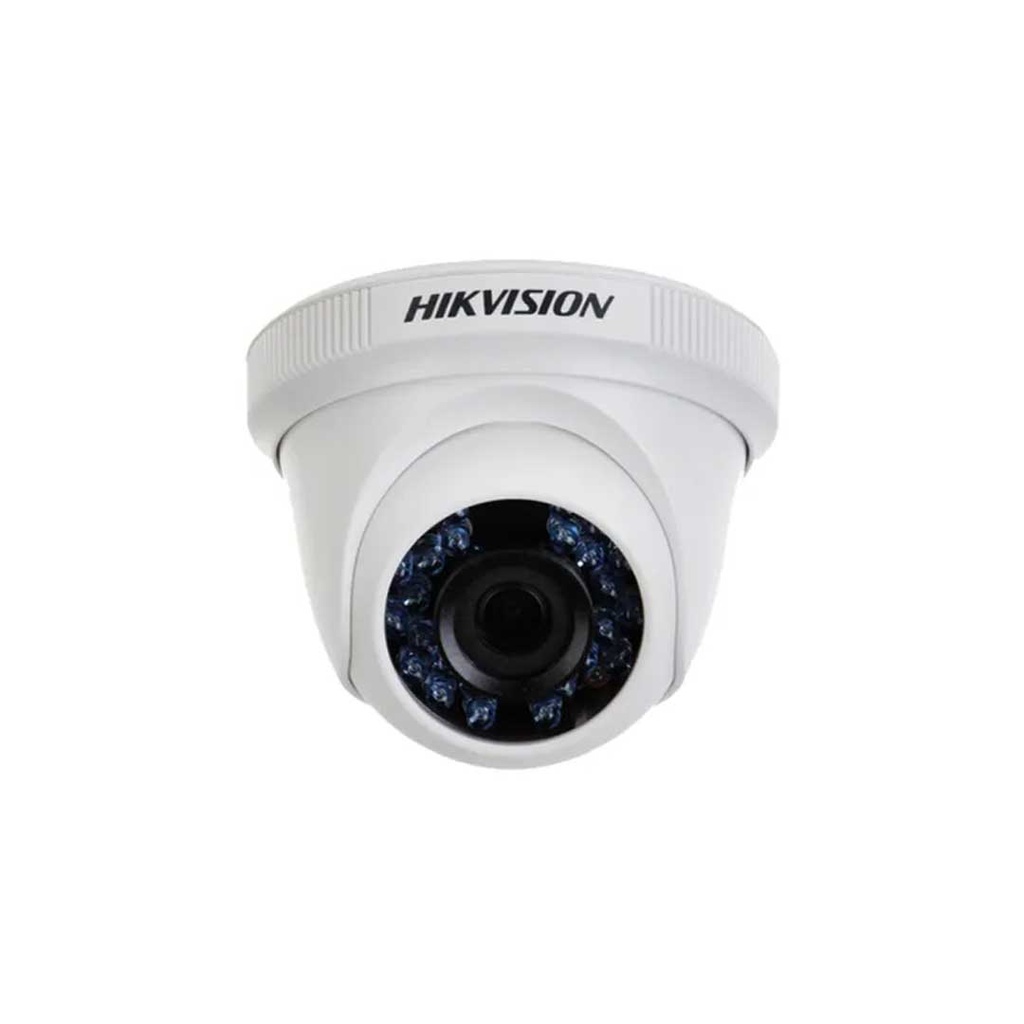

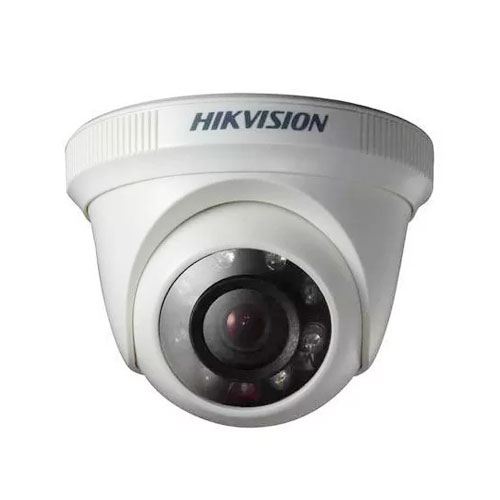

Hikvision DS 2CE56D0T-IRP 2MP Dome
2 MP CMOS image sensor
0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Signal System PAL/NTSC
2.8 mm fixed lens of IR Range Upto 20 m
TVI: 1080P@30fps, 1080P@25fps Frame rate
Auto/Color/BW (Black and White)
BLC, HLC Image Enhancement with Digital WDR
Protection IP 65
100% Original
15KM Free Delivery
Products over 5k
Products over 5k
| Category | Specification |
|---|---|
| Camera | |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | 2.8 mm, 3.6 mm, 6 mm fixed lens |
| Focal Length & FOV | 2.8 mm: H: 101°, V: 60°, D: 122° |
| 3.6 mm: H: 79.6°, V: 43.5°, D: 93.7° | |
| 6 mm: H: 51.9°, V: 30°, D: 58.8° | |
| Lens Mount | M12 |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | Brightness, Sharpness, Smart IR |
| Frame Rate | TVI: 1080P@30fps, 1080P@25fps |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range | Digital WDR |
| Image Enhancement | BLC, HLC |
| White Balance | Auto/Manual |
| AGC | Yes |
| Interface | |
| Video Output | 1 HD analog output |
| General | |
| Material | Plastic |
| Dimension | Φ 89.9 mm × 70.1 mm (Φ 3.54" × 2.76") |
| Weight | Approx. 130 g (0.29 lb.) |
| Operating Condition | '-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Communication | HIKVISION-C |
| Language | English |
| Power Supply | 12 VDC ± 25% |
| Consumption | Max. 2.2 W |
| IR Range | Up to 20 m |
| Brand | HikVision |
