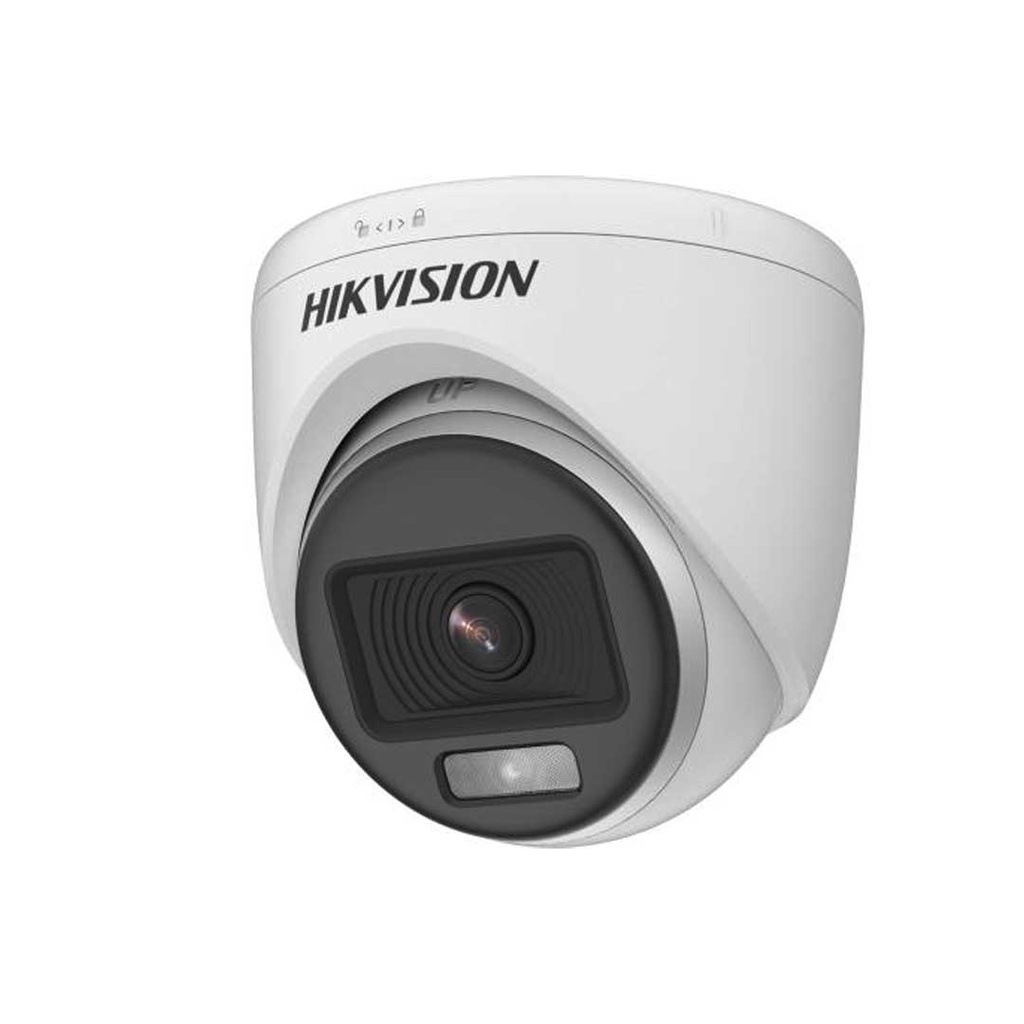

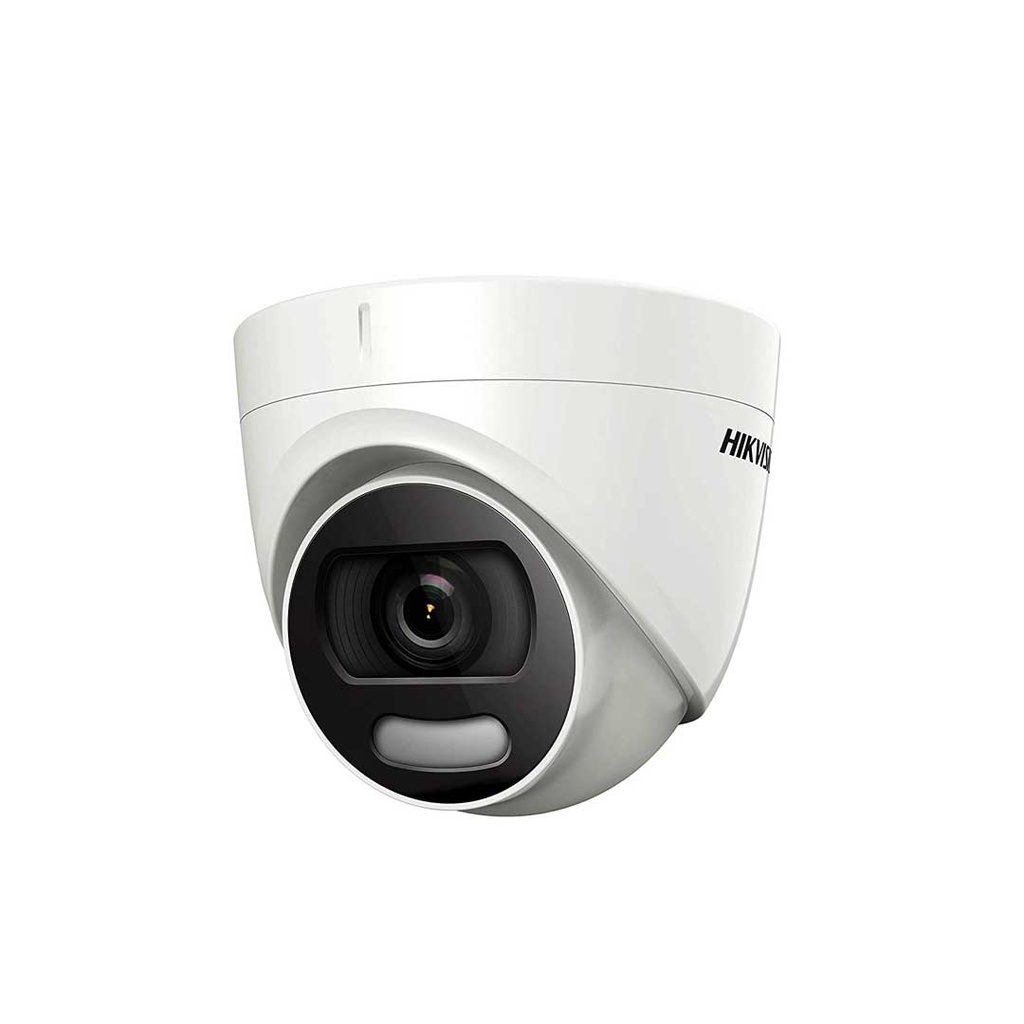

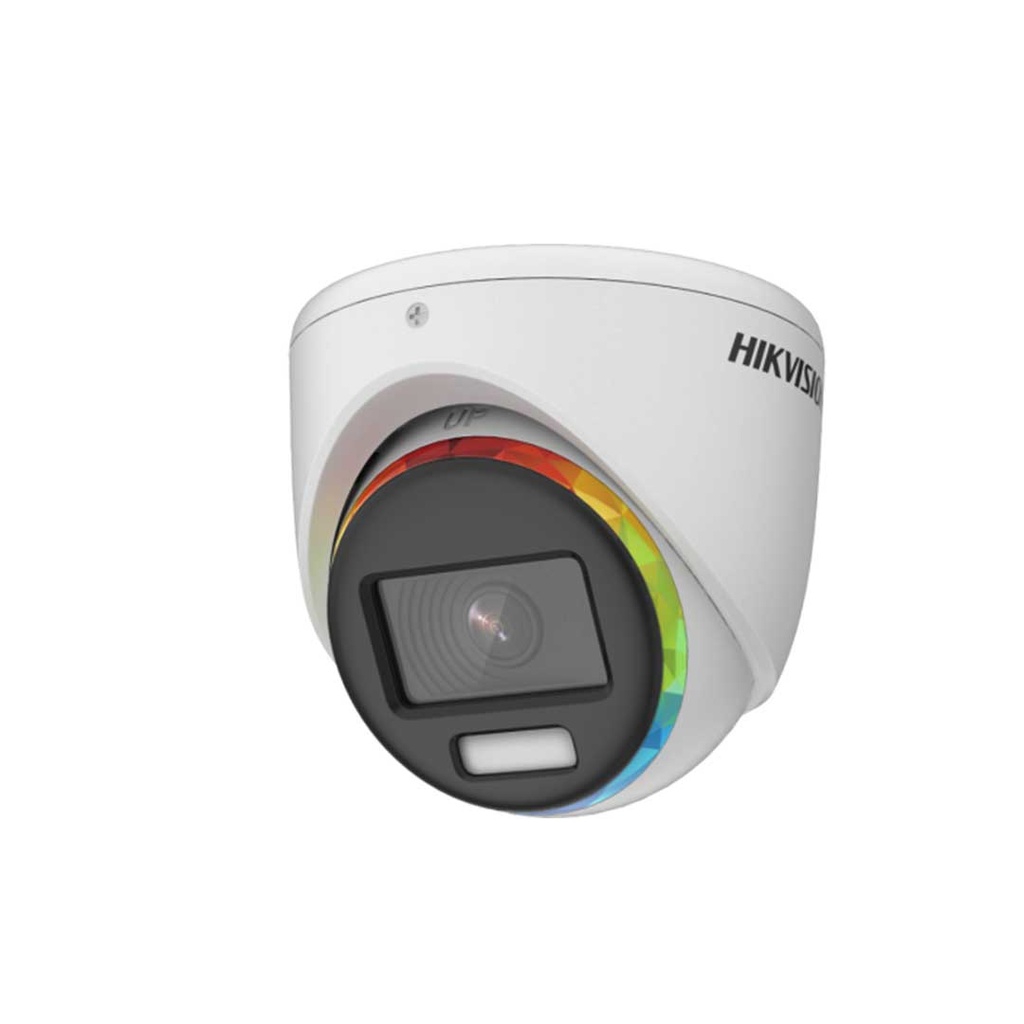

Hikvision DS 2CE70DF0T-PF 2MP Dome
High quality imaging with 2 MP, 1920 × 1080 resolution

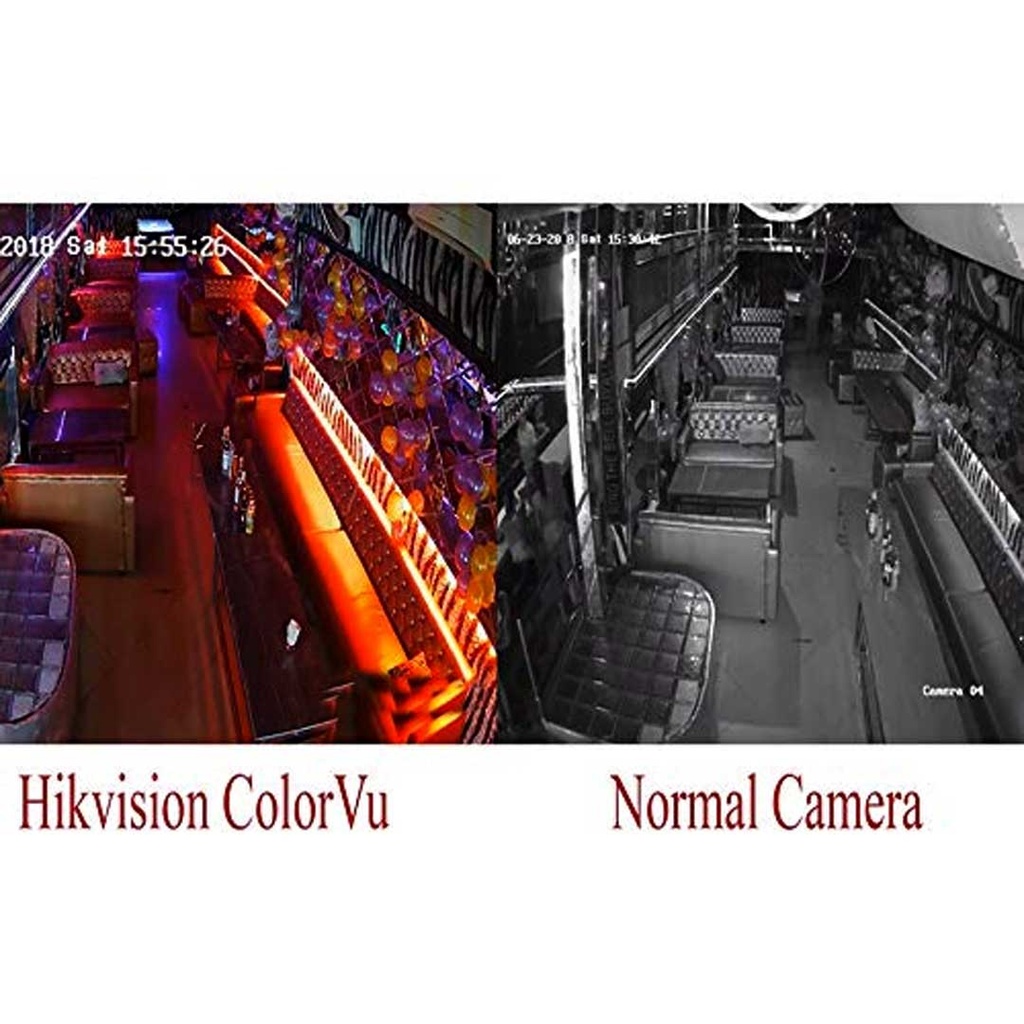

24/7 color imaging with F1.0 aperture
3D DNR technology delivers clean and sharp images
2.8 mm, 3.6 mm, 6 mmfixed focal lens
Up to 20 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS)
100% Original
15KM Free Delivery
Products over 5k
Products over 5k
| Category | Specification |
|---|---|
| Camera | |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| Signal System | PAL/NTSC |
| Light Alarm | Solid Light Alarm (White Light) |
| Lens | |
| Lens Type | 2.8 mm, 3.6 mm, 6 mm fixed focal lens |
| Focal Length & FOV | 2.8 mm, horizontal FOV: 98°, vertical FOV: 51°, diagonal FOV: 115° |
| 3.6 mm, horizontal FOV: 76°, vertical FOV: 41°, diagonal FOV: 90° | |
| 6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 58° | |
| Lens Mount | M12 |
| Illuminator | |
| Supplement Light | White Light |
| Supplement Light Range | Up to 20 m |
| Smart Supplement Light | Yes |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT/HIGHLIGHT |
| Image Settings | Brightness, Mirror, Sharpness, Anti-Banding, AGC |
| Frame Rate | TVI: 1080p@25fps/30fps |
| CVI: 1080p@25fps/30fps | |
| AHD: 1080p@25fps/30fps | |
| CVBS: PAL/NTSC | |
| Day/Night Mode | Color |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | DWDR, BLC, HLC, Global |
| Noise Reduction | 3D DNR/2D DNR |
| White Balance | Auto/Manual |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| General | |
| Material | Plastic |
| Dimension | Φ 85.02 mm × 81.25 mm (Φ 3.35" × 3.2") |
| Weight | Approx. 161 g (0.36 lb) |
| Operating Condition | -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing) |
| Communication | HIKVISION-C |
| Language | English |
| Power | 12 VDC ± 25%, Max. 2.4 W |
| *You are recommended to use one power adapter to supply the power for one camera. |
|
|
