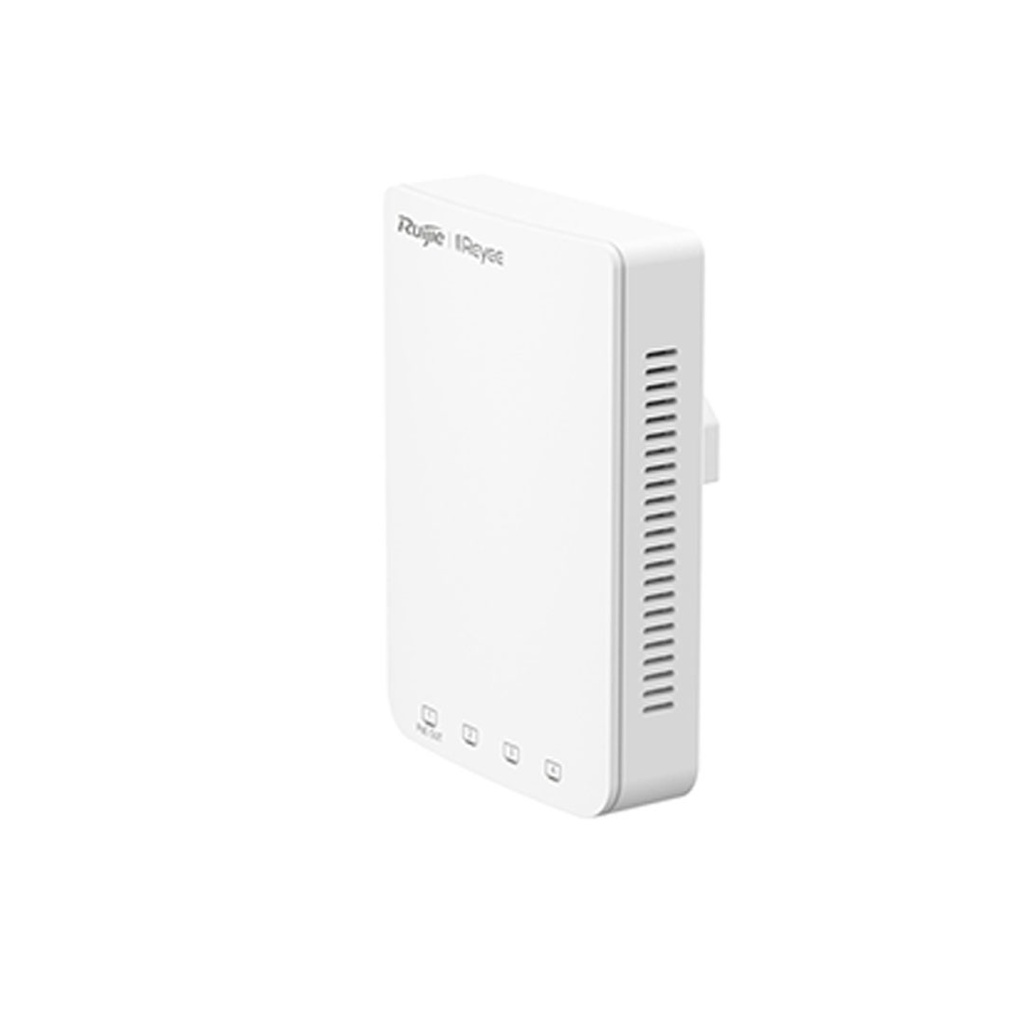

Ruijie Reyee RG-RAP1200(P) AC1300 Dual Band Gigabit Wall-plate Access Point

Radio

Dual-stream dual-band

Protocol

Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n

Operating Bands

802.11b/g/n : 2.4G-2.4835GHz
802.11a/n/ac : 5G : 5.150-5.350GHz, 5.725-5.850GHz

Antenna

PF antenna (2.4G: 2dBi, 5G: 2dBi)

Spatial Streams

2.4G 2x2MIMO
5G 2x2MIMO

Max Throughput

2.4G: up to 400Mbps
5G: up to 867Mbps
Access rate per AP: 1.267Gbps

Modulation

OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps

DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps

MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM

Receive Sensitivity

11b:-91dBm (1Mbps), -88dBm (5Mbps), -85dBm (11Mbps)

11a/g:-89dBm (6Mbps), -80dBm (24Mbps), -76dBm (36Mbps), -71dBm (54Mbps),

11n:-83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@MCS15

11ac HT20:-83dBm (MCS0), -57dBm (MCS9)
11ac HT40:-79dBm (MCS0), -57dBm (MCS9)
11ac HT80:-76dBm (MCS0), -51dBm (MCS9)

Maximum Transmit Power

5.725~5.850GHz:≤18dBm (EIRP)
5.150~5.350GHz:≤18dBm (EIRP)
2.4~2.4835GHz:≤18dBm (EIRP)

Adjustable Power

1dBm

Dimensions

126mm×86mm×50mm

Weight

0.24kg

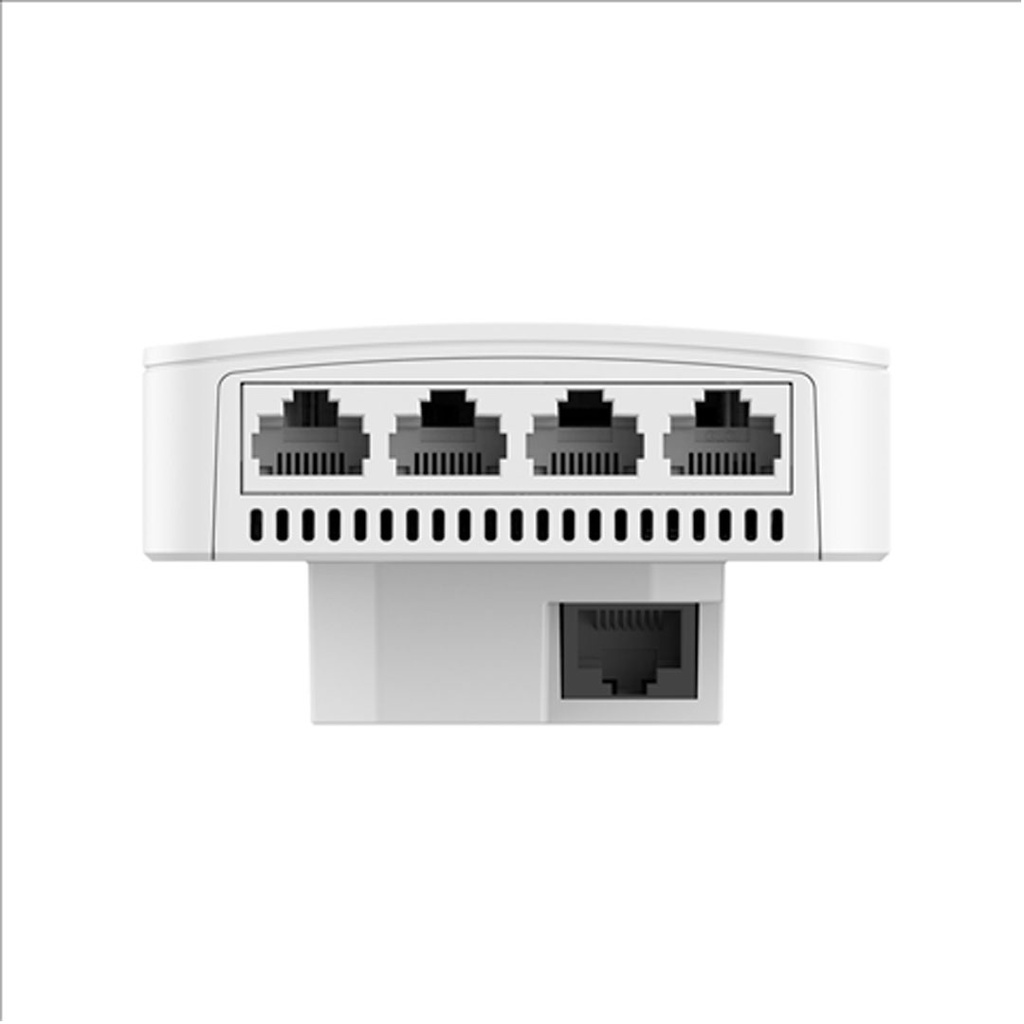

Service Ports

Front:
4 10/100/1000Base-T Ethernet ports

LAN1 port supports IEEE.802.3af PoE OUT

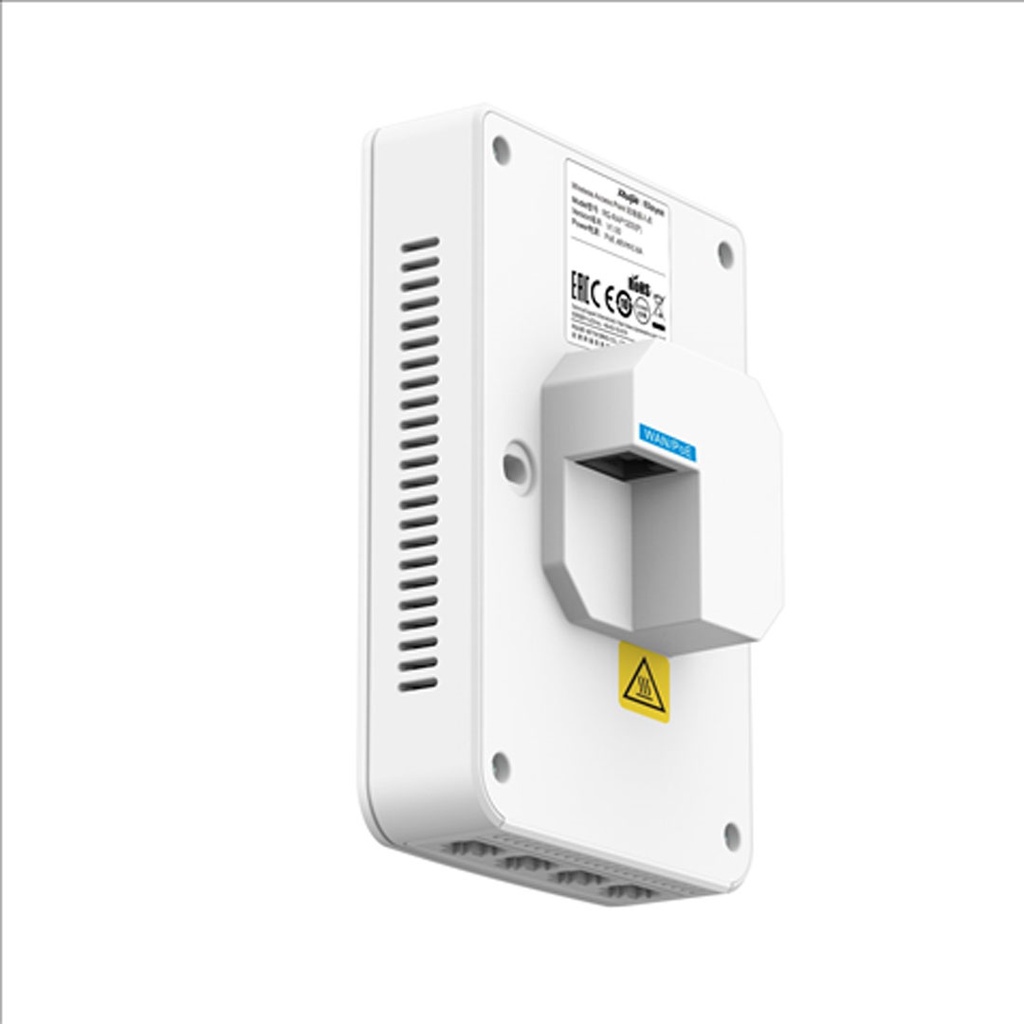

Rear:
1 10/100/1000Base-T Ethernet port

Management Port

N/A

LED Indicator

1 LED indicator

Power Supply

Support PoE (802.3af/at)

Power Consumption

≤ 8W

Environment

Operating temperature: -30°C~65°C
Storage temperature: -40°C~85°C
Operating humidity: 0%~100% (non-condensing)
Storage humidity: 0%~100% (non-condensing)

Installation

Wall plate installation

Safety Standard

GB4943, IEC 62368-1

EMC Standard

GB9254,EN301 489,EN50155,EN50121,EN55032,EN61000,EN55035

Vibration Standard

IEC61373

Radio Standard

SRRC certification, EN300 328, EN301 893

MTBF

>250000H

Software Features

Operating Mode

AP mode and routing mode

WLAN

Maximum number of clients: 110
Recommended number of clients: 80
Up to 8 SSIDs
Support SSID hiding
Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID
SSID-based and radio-based STA limit
Support Layer 2 user isolation

Roaming

Support Layer 2 and Layer 3 roaming

Security

Support PSK authentication
Support static blacklist and whitelist
Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption

Routing

Support static IP address, DHCP, PPPoE Dial Up

Management and maintenance

Support unified networking of all network equipment
Support local or remote management with Ruijie Cloud app
Support local management with web
Support remote management with Ruijie Cloud platform
