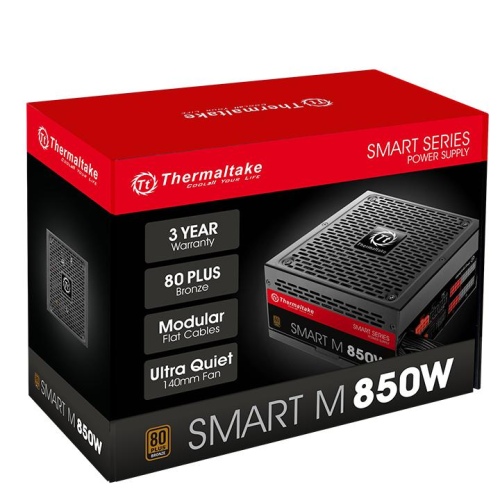

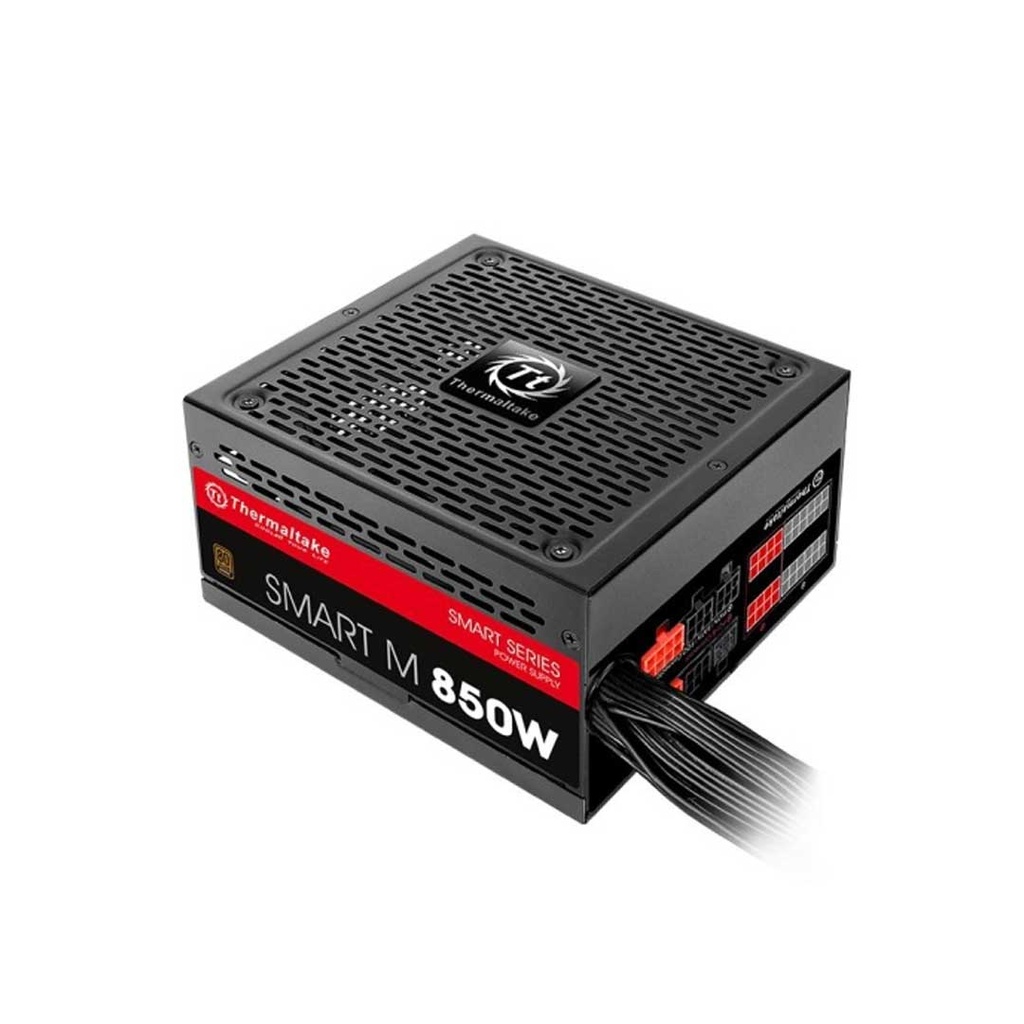

Thermaltake SMART M 850W 80 Plus Bronze Power Supply
The latest presentation from Thermaltake in the essence of mainstream systems – the Smart M Series PSU, a performance series of power supply units (PSU) that incorporated various PSU high-tech components, leading technology and Eco-friendly credentials, ranged between 650W to 850W
100% Original
15KM Free Delivery
Products over 5k
Products over 5k
| P/N | SP-850MPCBxx |
|---|---|
| WATTS | 850W |
| RGB FAN | No |
| FORM FACTOR | ATX |
| MODEL | SP-850AH3CCB |
| TYPE | ATX 12V v2.4 and EPS v2.92 |
| MAX. OUTPUT CAPACITY | 850W |
| PEAK OUTPUT CAPACITY | 1020W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 150mm(W) x 86mm(H) x 160mm(D) |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-500 msec |
| HOLD UP TIME | > 16msec at 80% of full load |
| INPUT CURRENT | 12A |
| INPUT FREQUENCY RANGE | 47Hz -63Hz |
| INPUT VOLTAGE | 100V-240V~ |
| OPERATING TEMPERATURE | 0°C to +40°C |
| OPERATING HUMIDITY | 20% to 90%,non-condensing |
| STORAGE TEMPERATURE | -20 °C to +70 °C |
| STORAGE HUMIDITY | 5% to 95%, non-condensing |
| COOLING SYSTEM | 140mm Fan: 2300 R.P.M. ± 10% |
| EFFICIENCY | Meet 80 PLUS®Bronze at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | UL/CUL/TUV/CE/FCC and BSMI |
| PCI-E 6+2PIN | PCI-E 6+2pin x 4 |
|
|
