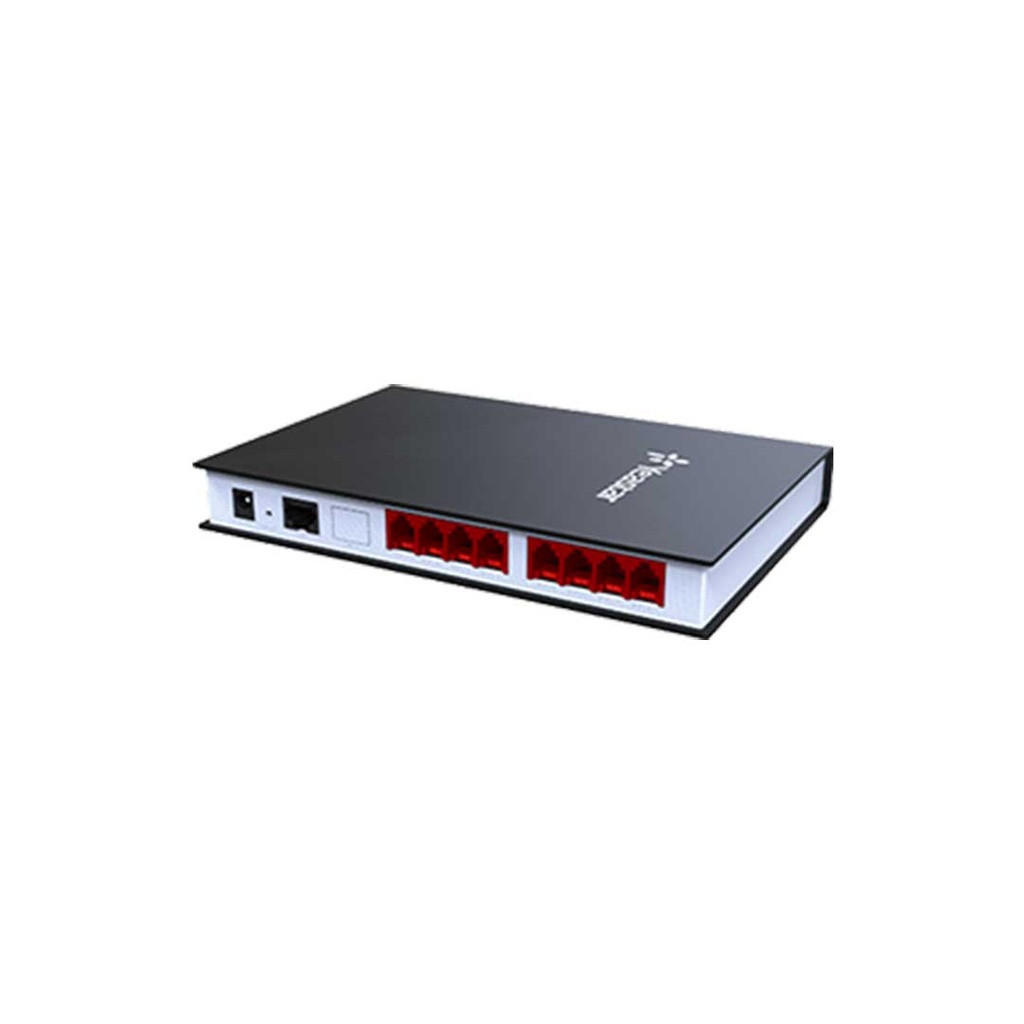

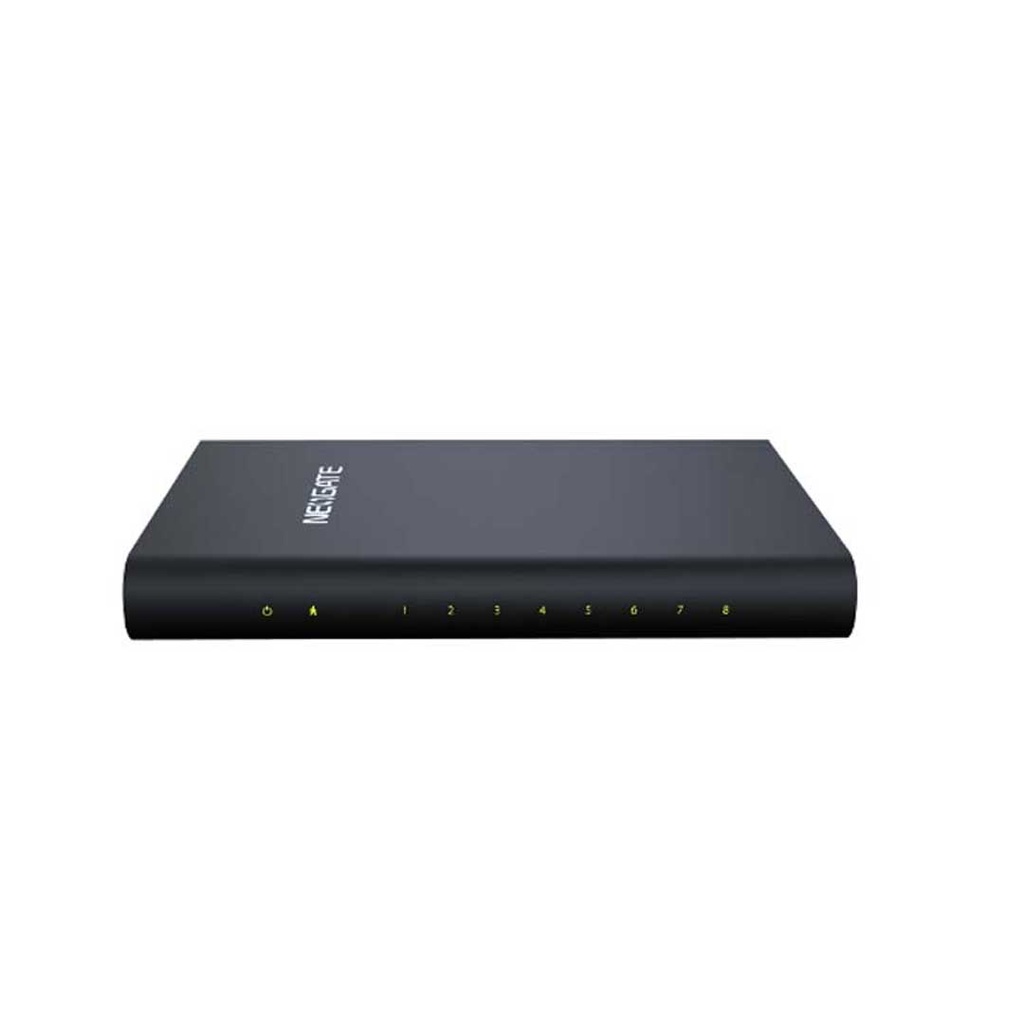

Yeastar TA810 VoIP FXO Analog Gateway
4/8/16/24/32 FXS ports or 4/8/16 FXO ports
Fully compliant with SIP and IAX2
Flexible calling rules
Reliable fax performance with T.38
Provides high-quality voice compression with industry standard codecs
Line echo cancellation for 8, 16, 32, 64 or 128 ms echo delays
Web-based GUI for easy configuration and management
Remote Management
Excellent interoperability with a wide range of legacy and IP equipment
100% Original
15KM Free Delivery
Products over 5k
Products over 5k
| Models | TA810 |
| RJ11 FXO Ports | 8 |
| RJ 21 Ports | 一 |
| LAN | |
| WAN | 1 10/100Mbps |
| Protocol | SIP (RFC3261), IAX2 |
| Transport | UDP, TCP, TLS, SRTP |
| Codec | G.711 (alaw/ulaw), G.722, G.723, G.726, G.729A, GSM, ADPCM |
| Voice Capability | ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer, VAD, CNG, PLC |
| DTMF Mode | RFC2833, SIP Info, In-band |
| Fax | T.30 |
| QoS | DiffServ, ToS, 802.1 P/Q VLAN tagging |
| Network | DHCP, DDNS, OpenVPN, PPPoE, Static Route, VLAN |
| Network Protocol | FTP, TFTP, HTTP, HTTPS, SSH |
| Management Protocol | – |
| Remote Management | Yes |
| Signaling | FXS Loop Start, FXS Kewl Start |
| Caller ID | BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID |
| Disconnect Methods | Busy Tone, Polarity Reversal |
| FXO Connectivity | Programmable AC Impedance, Hangup Detection, Answer Detection, Caller ID Detection |
| Power | 12V, 1A |
| Dimensions (L × W × H) (mm) | 200 × 137 × 25 |
| Operation Range | 0°C to 40°C, 32°F to 104°F; |
| Storage Range | -20°C to 65°C, -4°F to 149°F |
| Humidity | 10-90% non-condensing |
| Mounting | Desktop, Wall-mount |
| Compatibility | Interoperable with Asterisk, Lync Server, FreePBX and certified with Elastix. |
|
|
